LCD monitor 814

LEDdigital160 x 128

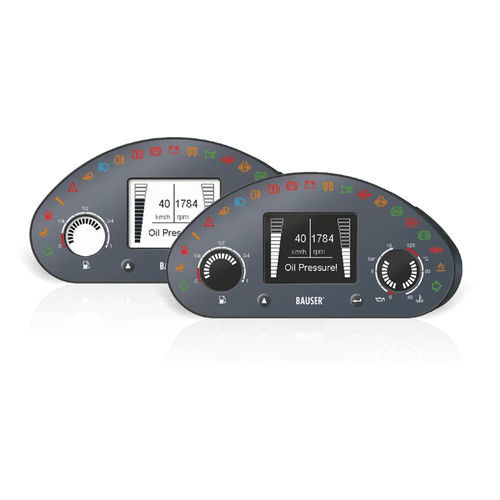

An attractive designed instrument cluster consisting of one Dot-Matrix display and two TN displays with bar graph display. The two buttons are backlit and used to set the hours as well as to scroll the menu. 21 LEDs with different icons are also perfectly readable outdoor even under direct sunlight. A variety of cluster options is available to suit most applications. Casing: Material: plastic PBT Front side: chemical and UV resistant polyester foil Viewing area: glass with low reflection Display: 1x Dot-Matrix display, 160x128 Dots, ASTN Technology 2x 26 bar graph segments, TN Technology Backlit: white, segments black LED indication: Maximum 21 LEDs, configurable assignment Can be read perfectly under direct sunlight Buttons: 2 buttons with backlit Electrical interfaces: 16x digital inputs, 3x analogue inputs (R, I, U) 2x Count input (speed, rpm) 1x CAN ISO 11898 Supply voltage: 8…36 VDC Ambient temperature: -20° C…+85° C Storage: -40° C…+85° C Electrical connection: Tyco super seal, 26 poles Fixing: Metal clamps with screws Protection class: IP67 front, IP40 back (optional IP65) Vibration resistance: EN 60068-2-64 Shock resistance: EN 60068-2-27, EN 60068-2-29 EMC: EN 12895, EN 13309, DIN 40839-1 Approval: CE
