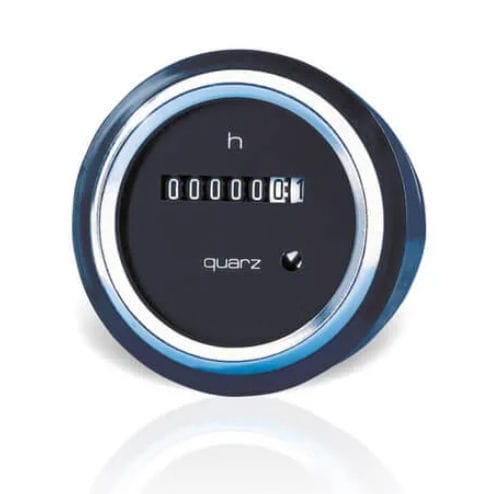

Time counter 587 series
houranalogelectromechanical

time counter
time counter
Add to favorites
Compare this product


Characteristics

Type
hour, time
Display
analog
Technology
electronic, electromechanical, vibration

Description

Further specifications for your order selection BAUSER technology has convinced already a large number of known OEM customers world-wide. The quartz-controlled hour counters are suited for cutout of ø 52 or 60 mm and offer a protection class of IP 65 (front). Reset: No Counting range: 99999,99 h Digits char. height: 1,5 x 3,5 mm, white on black, decimals black on white Voltage: 10 – 80 V DC (1,4 – 15 mA) Special voltages (at additional cost): 80 – 220 V DC (1,5 – 4,5 mA) Protection class (DIN 40050): Housing: IP 65 (front) Terminals: IP 00 Ambient temperature: –40 °C to +80 °C Fixing: Metal bolt Approval: CE Operation indication: Yes Connection: Short circuit and reverse battery protected Vibration resistance: Tested on 3 levels at 45 Hz, amplitude ± 0,5 mm each level, electronic and plastic version = little specific weight Time divergence: Only 0,01 % in 24 h; compared to the electromechanical counters no after-running differences arise on the indication Weight: Approx. 100 g
