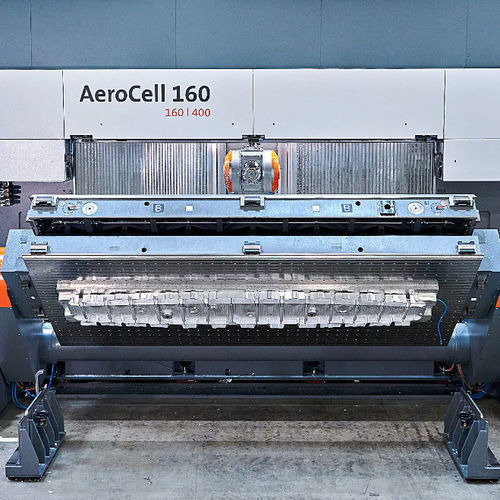

3-axis CNC milling center AeroCell 160
horizontalhigh-performancehigh-speed

3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Other characteristics
high-performance, high-speed, high-productivity, with integrated pallet changer
X travel

4,400 mm
(173.23 in)

Y travel

1,700 mm
(66.93 in)

Z travel

850 mm
(33.46 in)

Rotational speed

30,000 rpm
(188,496 rad.min-1)

Power

140 kW
(190.35 hp)

Work feed X-axis

70,000 mm/min
(46 in/s)

Work feed Y-axis

70,000 mm/min
(46 in/s)

Work feed Z-axis

70,000 mm/min
(46 in/s)

Description

Highest productivity in high speed milling of aluminum structure components with a low chip to chip time. The pallet is accessible from ail sides in setup position. When producing large aluminum structural parts the AeroCell horizontal machining center ensures optimum results from start to finish. High chip removal rates are the result of a machine concept designed for high performance: the synergy between high travel speeds, accelerations, jerk values and high spindle power and speed. Integrated pallet change The swivel and rotation function of the space-saving pallet changer with two pallets on the AeroCell allows loading and unloading while production is in progress. This proven bavius concept keeps non-productive time to a minimum! Ergonomic and space-saving Ergonomics is important to us: Setup of the AeroCell is made easier by the horizontal pallet position, which is easily accessible from all sides. 5-axis high-speed cutting of large structural parts Horizontal machining for optimum chip management and disposal Robust machine design; less floor space with no special foundation required High productivity due to integrated pallet changer Siemens SINUMERIK ONE control with all its advantages like Digital Twin 5-sided machining in a single set-up bavius is the benchmark in the horizontal machining! bavius LinkUp® Integrated automation and interlinking, standardised and customer-specific. We design the optimum automation solution to suit your specific needs. Cycle time and non-productive time are reduced. Continuous production capability – 24/7!
