Fiber laser cutting machine BLE PRO series
for metalsheet metalCNC

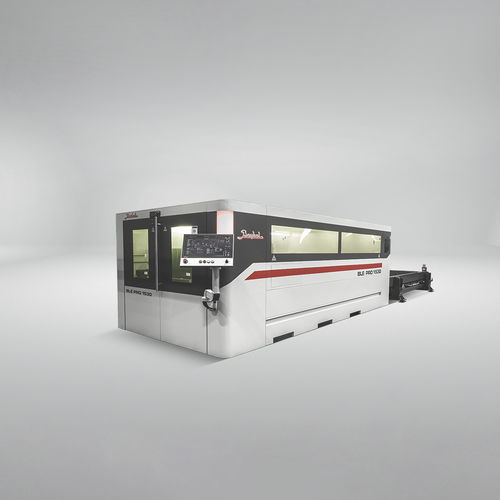

Fiber laser cutting machine - BLE PRO series - Baykal Makina - for metal / sheet metal / CNC

Add to favorites

Compare this product

Characteristics

Technology: fiber laser
Material: for metal
Product handled: sheet metal
Control type: CNC
Applications: for industrial applications
Workpiece loading: automated loading/unloading
Configuration: compact
Other characteristics: automatic, high-precision
X travel: 1,524 mm, 2,032 mm
(60 in, 80 in)
Y travel: 3,048 mm, 4,064 mm, 6,096 mm
(120 in, 160 in, 240 in)
Cutting speed: 95,000 mm/min, 135,000 mm/min
(62.336 in/s, 88.583 in/s)
Laser power: 1,000 W, 2,000 W, 3,000 W, 4,000 W, 6,000 W
Repeatability: 0.05 mm
(0.002 in)
Acceleration: 15 m/s², 18 m/s²
(49 ft/s², 59 ft/s²)

Description

BAYKAL Laser Cutting System: New BLE-Pro Fiber Laser. The BLE PRO is available as a 1.0kW, 2.0kW, 3.0kW, 4.0kW, and now 6.0kW. You can choose between large format (1500mm x 3000mm), max-format (2000mm x 4000mm), or even oversize format (2000mm x 6000mm) The whole machine can be packed in one 40OT container, which lets the investor save up with the cost of transportation and with a place in the workshop. Huge opening front doors with windows are useful to monitor the working area inside of the machine. The New BLE-Pro can cut a wide variety of materials with different thicknesses coming up with a result of excellent quality at the highest possible speed. New BLE - Pro can be automated and is ready for Industry 4.0 The welded steel frame construction of the compact NEW BLE - Pro minimises deformation caused by high acceleration and ensures overall machine accuracy. The gantry is sturdy, not compromising on quality of stiffness and durability of the machine. The machine maximises uptime with an integrated shuttle table system that allows one table to be loaded/unloaded while cutting on the other table. Tower Compact - Automatic Loading and Unloading for BLE-PRO Auto Nozzle Cleaning | Auto Nozzle Changer | Nozzle Centering Baykal made interface makes your work easier and ensures you to get best results. The sliding front opening door is equipped with a magnetic safety lock. New BLE-Pro has a cabin structure designed in accordance with CE standards. Equipped with high torque BECKHOFF servo motors and high precision reducers. Interior camera provides an excellent overview of the entire working area – with complete safety.
