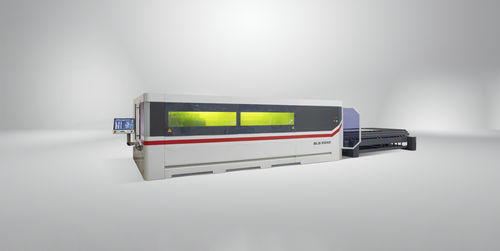

Fiber laser cutting machine BLSfor metalsheet metalCNC
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- sheet metal
- Control type
- CNC
- Associated function
- bevel
- Applications
- for industrial applications
- Other characteristics
- automatic, high-precision, rack-and-pinion
- X travel
Max.: 3,000 mm
(118.11 in)Min.: 2,000 mm
(78.74 in)- Y travel
Max.: 15,000 mm
(590.55 in)Min.: 4,000 mm
(157.48 in)- Cutting speed
115,000 mm/min, 150,000 mm/min, 165,000 mm/min, 215,000 mm/min
(75.459 in/s, 98.425 in/s, 108.268 in/s, 141.076 in/s)- Laser power
Max.: 20,000 W
Min.: 6,000 W
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)- Acceleration
22 m/s², 30 m/s²
(72 ft/s², 98 ft/s²)- Weight
2,500 kg, 3,500 kg
(5,511.56 lb, 7,716.18 lb)
Description
Working area : 2.000x4.000 mm / 2.000x6.000 mm (up to 3.000x15.000 mm)
Laser Power : 6 kW - 20 kW
Cutting Head : Precitec ProCutter 2.0 (Optionally ProCutter Zoom 2.0)
Focusing Lenses : 150 mm
CNC Control Unit : Beckhoff CNC (18.5’’ TFT-Windows 10)
Transfer Table Motorized : Motorized - Automatic Exchange
Max. Load Capacity : 2500 kg for 2000x4000 mm / 3500 kg for 2000x6000 mm
Nesting Software : LANTEK Expert Cut II / Metalix AutoNest PRO
Nozzle Cleaning and Calibration : Automatic
Fume extractor : Optional
Bevel Cutting Head : Optional
