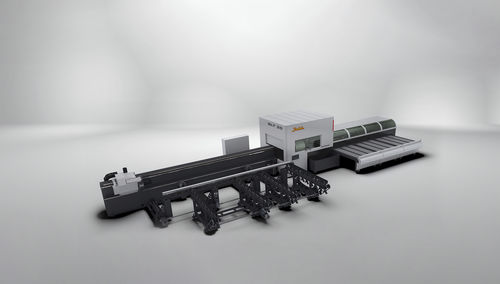

Tube processing line BLT 3D

Tube Processing With Laser Technology • Cutting Head : Precitec Light Cutter 3D • CNC Control Unit : Beckhoff CNC (18.5’’ TFT-Windows 10) • Max. Tube Length : 6100 mm (8100 mm Optional) • Max. Part Length : 4000 mm • Min. Auto Loading Length : 2000 mm (Automatic Loading) • Acceleration of Driver Chuck : 7000 Deg/s² • Speed of Driver Chuck : 560 º/s • Types of Profiles : Round, Rectangular, Triangular, C, U, L, Ellipse, Obround, Custom Shapes • Min./Max. Round Diameter : Ø16 / Ø214 mm • Min./Max. Square Diameter : Min 16x16 mm / Max. 214x214 mm • Lenght of Last Part : 60 mm • Max. Tube Weight : 240kg • Min. Material Thickness : 0,8 mm • Rapid Traverse : 90 m / min • Vector Speed : 130 m /min • Acceleration : 1.0G (10m/s2) • Absolute Positioning Accuracy : ± 0.01 mm • Repeatability (X & Y Axis) : ± 0.02 mm • Automatic Loading/Unloading : Optional • Feed Rate : Programmable up to 50 m/min. Actual feed rate depends on material and thickness.
