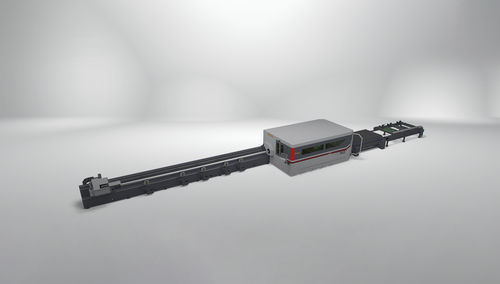

Tube processing line BLC

Max. Tube Length : 6100 mm (8100 mm Optional) Max. Part Length : 4000 mm Min. Auto Loading Length : 2000 mm Acceleration of Driver Chuck : 7000 Deg/s² Speed of Driver Chuck : 560 º/s Types of Profiles Round, Rectangular, Triangular, C, U, L, Ellipse, Obround, Custom Shapes Min./Max. Round Diameter : Ø16 / Ø214 mm Min./Max. Square Diameter : Min 16x16 mm / Max. 214x214 mm Lenght of Last Part : 220 mm Max. Tube Weight : 240 kg Min. Material Thickness : 0,8 mm Cutting Head : Precitec ProCutter 2.0 CNC Control Unit : Beckhoff CNC (18.5’’ TFT-Windows 10) Rapid Traverse : 115 m / min Vector Speed : 160 m / min Acceleration : 2.2G (22m/s2) Absolute Positioning Accuracy : ± 0.01 mm Repeatability (X & Y Axis) : ± 0.02 mm Automatic Loading : Optional Automatic Unloading : Standard Feed Rate : Programmable up to 50 m/min. Actual feed rate depends on material and thickness.
