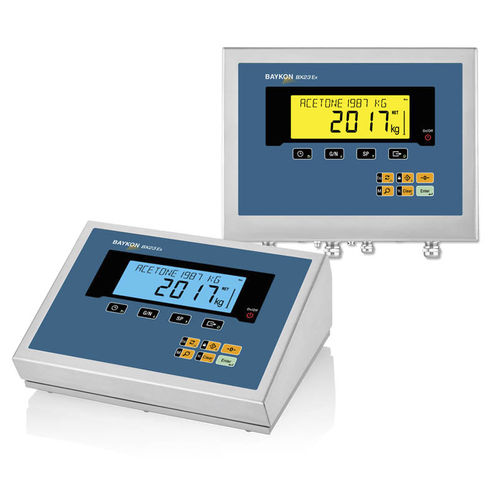

LCD display weight indicator BX23 EX2/22
benchtopwall-mountexplosion-proof

LCD display weight indicator - BX23 EX2/22 - BAYKON Industrial Weighing Systems - benchtop / wall-mount / explosion-proof
LCD display weight indicator - BX23 EX2/22 - BAYKON Industrial Weighing Systems - benchtop / wall-mount / explosion-proof
Add to favorites
Compare this product


Characteristics

Display
LCD display
Mounting
benchtop, wall-mount
Protection level
explosion-proof, rugged, for hazardous environments, for wet environments, IP67
Output
Profibus, Ethernet, analog
Other characteristics
stainless steel, programmable
Applications
for tanks

Description

BX23 Ex2/22 is a weighing terminal offers high accuracy and performance with strong connectivity options for weighing applications in hazardous areas. With its IP67 protected stainless steel housing, it provides reliable and safe operation in wet, hygienic and harsh industrial areas. BX23 Ex2/22 is certified for ATEX and IECEx and can be used in the zones 2/22 hazardous areas having explosive gases and dust. BX23 Ex2/22 has strong calibration alternatives including eCal-electronic calibration, which is an extremely important tool for heavy cpacity tank scales and for the calibration of tanks without emptying. For connectivity, BX23 Ex2/22 is certified for the following interfaces: 2 x RS232C, 1 x RS485, and Ethernet TCP/IP, Modbus RTU, Modbus TCP as standard; and Analogue output, EtherNet/IP, Profibus, Profinet, EtherCAT, CC-Link, Powerlink and Digital I/O with 4 opto isolated inputs and 5 relay outputs option.
