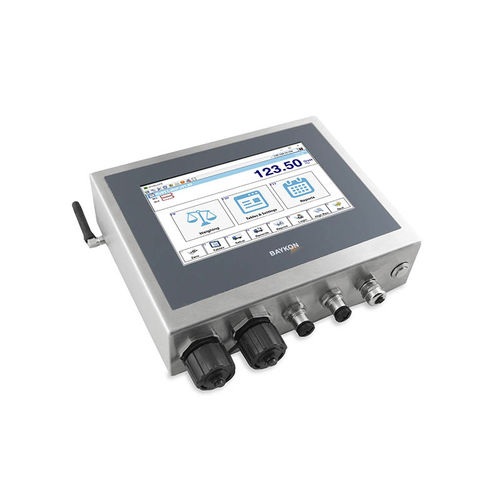

Weighing terminal with touchscreen BX07M

IP65ProfibusEthernet

Baykon BX07M is a Windows CE based Industrial Terminal with IP65 Protected Stainless Steel housing and designed for mobile weighing applications. Its wireless communication with analogue or digital load cell-based weighing platform / scales provides enormous flexibility for industrial mobile weighing applications. Baykon BX07M Terminal’s standard labelling and data collection software offers a customized weighing menu and ticket design with barcode. Transactional weighing data can be entered easily with 7” color touch screen monitor, wireless barcode and external PC keyboard. Peripherals like printers, barcode readers, remote display can be connected directly. Weighing records saved in the terminal can be transferred directly to SQL Server with Web Service. Excel file transfer is also possible into USB memory or to a PC with Data Editor software. Battery status is shown on BX07M monitor at battery powered scales. BX07M puts the battery powered load cell interface unit into sleep mode automatically to increase the battery operation time if the scale is at a standstill for a pre-programmed time.
