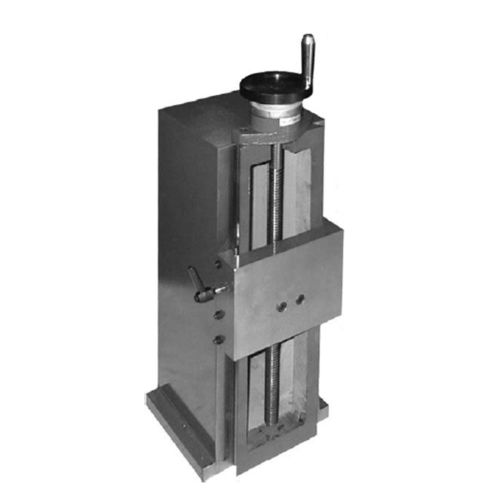

Z-axis stage Z seriesvertical2-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- Z-axis, vertical
- Number of axes
- 2-axis
- Stroke
300 mm
(11.811 in)
Description
VERTICAL axis table for applications with linear units (Travel 300). Can be used only in vertical position.
All elements in stabilized cast iron GG25. All surfaces with grinded finishment. Millimetered rules in XY. Vernier/nonuis matt chrome. Dial, with zero setting. Spindle with trapezoidal thread. Adjustable spindle nut. Standard lock in XY(M6 screw to block the dovetailed guides in working position).
