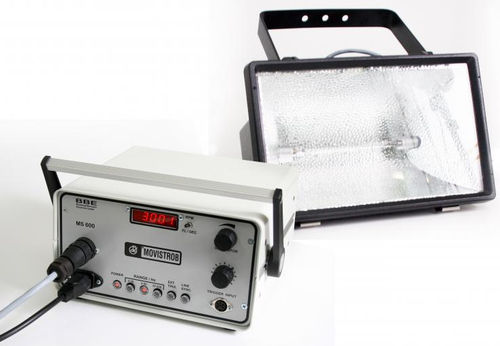

Digital stroboscope MOVISTROB 600.00

with separate lamp

Compact, quartz controlled high-power stroboscope with digital display and extremely high light intensity for applications where large areas of fast moving objects are to be illuminated; highly integrated IC/CMOS-technology; 7-segment LED-display 10 mm high; readout in Hz or RPM; color signal push buttons; high-energy quartz flash bulb with automatic overload protection. General Data: Light Source: external reflector illuminator with flash bulb Flash bulb: high energy, socket-mounted Xenon-quartz rod-shaped flash bulb model GS 600 for high performance lamp 600-GS, Art.No. 11037 model KS 600 for high performance lamp 600-KS, Art.No. 11060 Light intensity: depending on frequency range: I = 5000 Lux, II = 4000 Lux, III = 2500 Lux (at a distance of 50 cm from light source) Flash duration: depending on frequency range: I = 20 µs, II = 15 µs, III = 10 µs Frequency range: 2 - 320 Hz = 120 - 19.200 RPM (min-1) subdivided into 3 overlapping ranges 1.) 2 - 20 Hz = 120 - 1200 RPM (min-1) 2.) 8 - 80 Hz = 480 - 4800 RPM (min-1) 3.) 32 - 320 Hz = 1920 - 19200 RPM (min-1) Trigger action: internal oscillator, external triggering or mains synchronous, selected by signal control push button - Internal control: by 10-turn spiral potentiometer - External control: by contact or pulse signals
