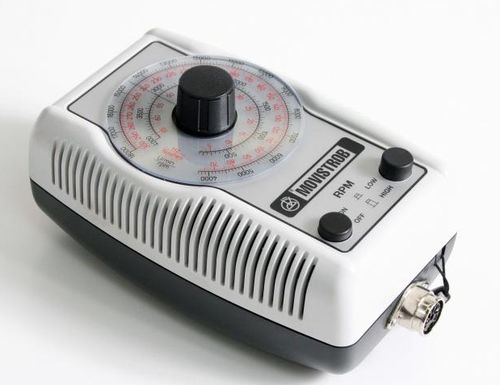

Very compact, ergonomically styled, processor-controlled ministroboscope with analogue dial and external powerpack operation. (powerpack 2020.03 optional)
Features:
Small dimensions, low weight, innovative and elegant design, trouble-free processor-technology, very precise adjustment of the flash frequency by rotary knop scale, stabilized voltage, temperature constant.
General Data:
Light Source: flash bulb, internal
Flash bulb: socket mounted Xenon-longlife, model MS 2000, Art.No.: B10619
Light intensity: max. 450 Lux in 50cm distance from reflector (beam axis)
Flash duration: approx. 2 - 7µs
Frequency range: 2,5 - 300Hz = 150 - 18.000 RPM (min-1)
subdivided into 2 overlapping ranges
1.) 2,5 - 66,6 Hz = 150 - 4000 RPM (min-1)
2.) 61,6 - 300 Hz = 3700 - 18000 RPM (min-1)
Trigger action: internal oscillator
- Internal control: by dial potentiometer
Display: reading in Hz (flashes per sec.) or RPM (min-1) by parallax-free scale setting.
