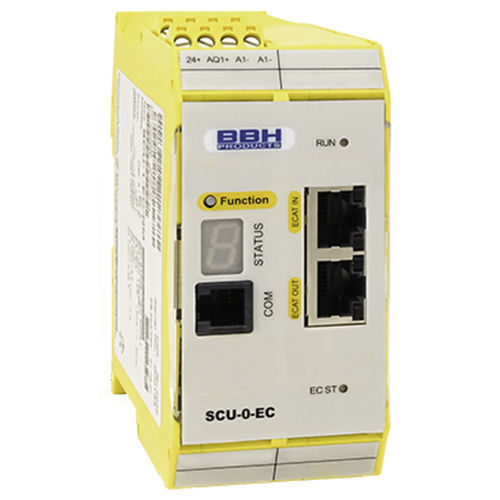

Digital master module SCU-0-EC

EtherCATsafetydecentralized

Open programmable and configurable FSoE master module for operation on EtherCAT networks Easy integration of safe drives (Safe Drive Profile) Fast-channel task with guaranteed processing time of 4 ms Safety control unit suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) optional kinematic module, FSoE-/ PROFIsafe slave stack Ethernet-based fieldbus interface, safe / non-safe Memory card for safety program Characteristic of the module Connection up to 32 FSoE slave units Safe logic processing of input, output, status and activation signals Simple and transparent programming and parameterization in EtherCAT environment via SafePLC2 Fast rssponse time with integrated Fast channel task with guaranteed processing time of 4 ms Central and decentralized drive monitoring possible Complete set of drive monitoring for single axes and calculated axes (based on kinematics function) Temporary deteerministic data communication and processing for safe position an speed functions via distributed sensor / multiple axes Profiles specifically adaptable to inverter types / manufacturers for process data exchange and central parameterization safe cross communication (SMMC: Safe Master- Master Communication) for data exchange between FSoE master via EAP Storage of the safe parameters in the SCU master Coded status display via front 7-segment display and status LEDs Multifunction button (Quit, Start, Reset) Optional: integrated communication interface (/NM) : Safe kinematics module for up to 6/12 axes with spatial speed and position monitoring
