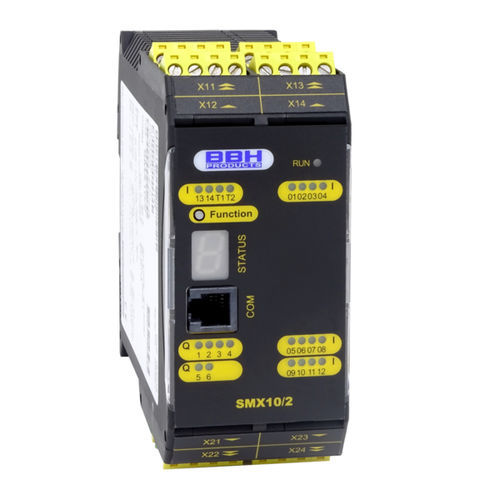

Compact programmable controller SMX 10/2 series

digital inputrelay outputsdigital outputs

Free programmable and configurable compact-type safety controller 14 Safe digital inputs 2 Safe relay outputs 2 Pulse outputs 2/4 pn- or pp-switching outputs Safety controller suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Optional: safe/non-safe communication interface Decentral communication Characteristic of the module Extendable up to: • max. 42 safe digital inputs, • max. 12 safe digital outputs, • max. 20 safe digital I/O‘s, • max. 11 safe relay outputs, • max. 10 auxiliary outputs Logic processing up to PL e acc. to EN ISO 13849-1 or SIL 3 acc. to IEC 61508 Freely programmable for safe processing of EMERGENCY STOP pushbutton, two-hand control, light grid, operating mode selector switch, etc. Function-plan oriented programming via SafePLC² Pulse outputs for cross-shorting detection of digital input signals External contact monitoring of connected switchgear (EMU) Monitored relay outputs for safety relevant functions Switchable safe semi-conductor outputs pn-, pp-switching for safety-relevant functions Comprehensive diagnostics functions integrated Parameter management for expansion modules in base device Status monitoring by coded 7-segment-display and status LEDs Multifunction button (quit, start, reset) can be operated from the front side Configurable via SafePLC² Seriel USB-adapter or Ethernet-based fieldbus Optional: Communication interface: Standard and safe field bus protocols for communication with a higher level controller (PROFIBUS, PROFINET, DeviceNet, CANopen, EtherNET/IP, EtherCAT, Modbus TCP, PROFIsafe, FSoE)
