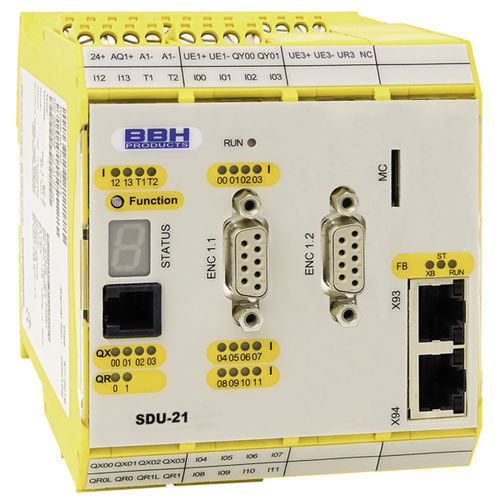

Digital I/O module SDU-21

EtherCATwith relay output4 digital outputs

FSoE slave module for safe speed and position of up to 2 axes for further evaluation in an FSoE Master module. 14 safe digital Inputs Up to 4 safe digital outputs 4 Encoder interfaces 2 Relay outputs 2 Pulse (clock) outputs 2 Auxiliary outputs Safety control suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Memory Card for safety program Characteristic of the module Decentralized safe axle assembly for the EtherCAT environment Safe detection of speed and position of up to two axes Fast response time with integrated Fast Channel Task with guaranteed processing time of 2 ms Complete speed and position-related safety functions for drive monitoring IEC 61800-5-2 integrated into firmware Speed monitoring RPM-monitoring Standstill monitoring Sense of rotation monitoring Safe incremental dimension Emergency Stop monitoring Position monitoring Position range monitoring Trend range monitoring Target position monitoring Pulse outputs for cross-shorting detection of digital input signals External contact monitoring of connected switchgear (EMU) Monitored relay outputs for safety-relevant functions Switchable safe semi-conductor outputs pn-, pp-switching for safety-relevant functions Functionplan-oriented parametrization Parameter management for expansion modules in base device Comprehensive diagnostics functions integrated Coded status display via front-side 7 segment display and status LEDs
