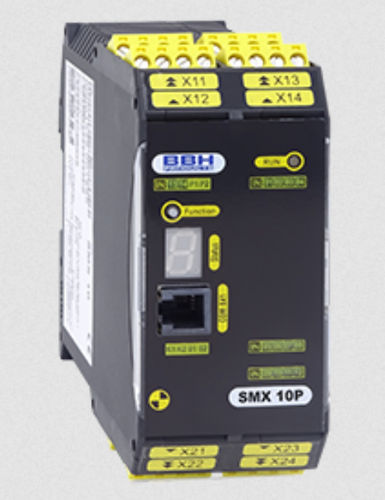

Compact programmable controller SMX 10P

digital inputrelay outputsdigital outputs

Free programmable compact-type safety control without Safe Motion (PESSRAL) 14 safe digital inputs 2 safe digital outputs 1 safe relay output 2 clock / auxiliary output Safety control suitable up to PL e (EN ISO 13849-1) / SIL3 (IEC 61508), use as PESSRAL acc. to DIN EN 81-20/50:2014 optional: safe/non-safe fieldbus interface Characteristic of the module Extendable up to: max. 42 safe digital inputs max. 12 safe digital outputs max. 20 safe digital I/O‘s max. 11 safe relay outputs max. 10 auxiliary outputs Logic processing up to PL e acc. to EN ISO 13849-1 or SIL 3 acc. to IEC 61508 Free programmable small controller for up to 800 AWL instructions Functionplan oriented programming via SafePLC² Pulse outputs for cross-shorting detection of digital input signals External contact monitoring of connected switchgear (EMU) Monitored relay outputs for safety relevant functions Switchable safe semi-conductor outputs pn-, pp-switching for safety-relevant functions Comprehensive diagnostics functions integrated Parameter management for expansion modules in base device Status monitoring by coded 7-segment-display and status LEDs Multifunction buttons (quit, start, reset) can be operated from the front side Configurable via SafePLC² Seriel USB-adapter or Ethernet-based fieldbus Optional: expandable with communication module (SMX5x): Standard and safe field bus protocols for communication with a higher level controller (PROFIBUS, PROFINET, DeviceNet, CANopen, CAN2.0, EtherCAT)
