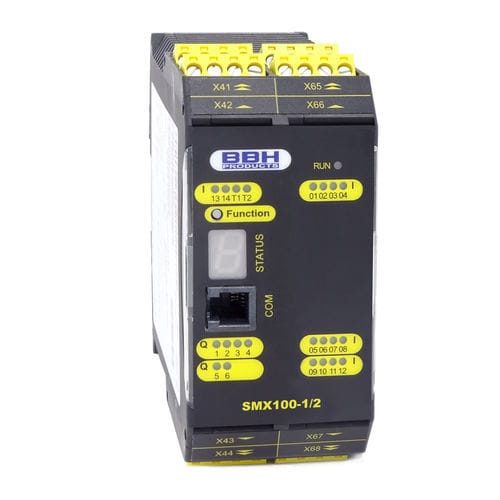

Integrated programmable controller SMX 100-1/2 series

digital inputrelay outputsdigital outputs

Free programmable and configurable modular safety controller 14 Safe digital inputs 2 Safe relay outputs, 2 pulse outputs 2/4 pn- pp-switching outputs 2 Auxiliary outputs With integrated drive monitoring for up to 12 axes Safety controller suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Optional: safe / non-safe fieldbus interface Characteristic of the module Extendable up to: max. 126 safe digital inputs max. 36 siafe digital outputs, max. 120 safe digital I/O‘s, max. 50 safe relay outputs, max. 34 auxiliary outputs and/or 12 safe axes Freely programmable modular controller for up to 3000 IL instructions Complete speed and position-based safety functions for drive monitoring in accordance with IEC 61800-5-2 are integrated in firmware Spatial functions for safe speed and are monitoring are possible Functionplan oriented programming via SafePLC² Pulse outputs for cross-shorting detection of digital input signals External contact monitoring of connected switchgear (EMU) Monitored relay outputs for safety relevant functions Switchable safe semi-conductor outputs pn-, pp-switching for safety-relevant functions Comprehensive diagnostics functions integrated Parameter management for expansion modules in base device Status monitoring by coded 7-segment-display and status LEDs Multifunction button (quit, start, reset) can be operated from the front side Configurable via SafePLC² Seriel USB-adapter or ethernet-based fi eldbus
