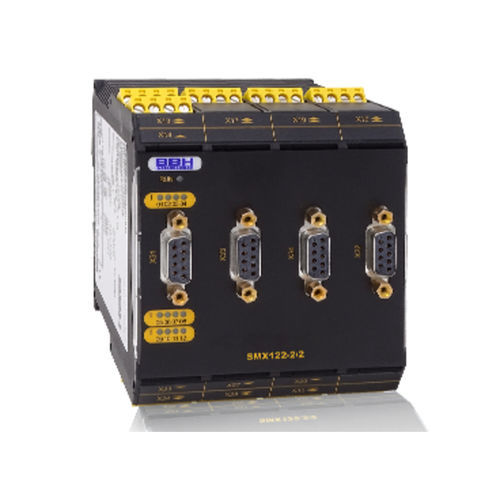

I/O expansion module SMX 122-2/2

Central axis extension module for safe speed and position of up to 2 axes for further evaluation in SMXmodular - base modules 12 Safe digital inputs 8 Encoder interfaces Safety controller suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Characteristic of the module Motion monitoring of one or two axes up to PL e (EN ISO 13849-1) or SIL 3 according to IEC 61508 Speed monitoring Speed monitoring Standstill monitoring Direction of rotation monitoring Safe increment Emergency stop monitoring Position monitoring Position/travel range monitoring Target position monitoring Parameter management for expansion modules in the basic unit Extensive diagnostic functions integrated Extended functionality: Allows the connection of up to 2 encoders per axis ( SSI absolute, SinCos, TTL, HTL proximity sensor) 2nd encoder interface additionally supports a high-resolution HTL (200 kHz), SinCos High-Resolution and resolver
