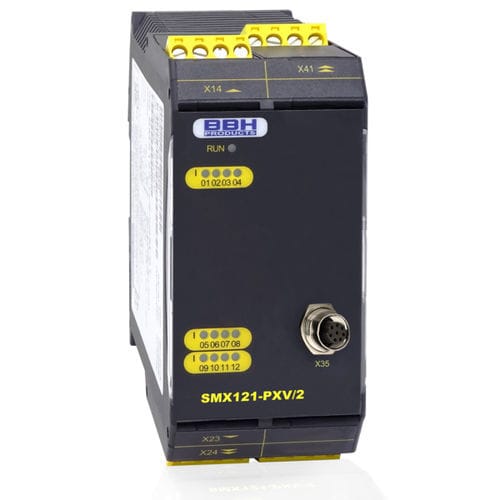

I/O expansion module SMX 121-PXV/2

Central axis extension module for speed and position of 1 axis for further evaluation in SMXmodular - base modules Integrated drive monitoring of 1 axis with safePXV encoder interface 12 safe digital inputs Safety control suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Characteristic of the module Complete speed and position-related safety functions for drive monitoring of one axis acc. to IEC 61800-5-2 into firmware Safe position monitoring with only one sensor in combination with the optical reading head PXV100AS-F200-R4-V19-BBH Speed monitoring Standstill monitoring Direction monitoring Safe incremental dimension Emergency Stop monitoring Position monitoring Position range monitoring Trend range monitoring Target position monitoring Parameter management for expansion modules in base device Extended functionality: safePXV encoder interface
