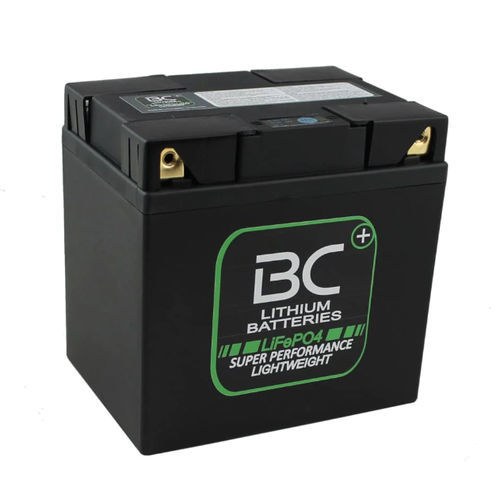

Lithium iron phosphate battery BC-FP-WIQ BCTX30
12 Vfor electric vehiclesCE

Lithium iron phosphate battery - BC-FP-WIQ BCTX30 - BC Battery Controller - Forelettronica Srl - 12 V / for electric vehicles / CE
Lithium iron phosphate battery - BC-FP-WIQ BCTX30 - BC Battery Controller - Forelettronica Srl - 12 V / for electric vehicles / CE
Lithium iron phosphate battery - BC-FP-WIQ BCTX30 - BC Battery Controller - Forelettronica Srl - 12 V / for electric vehicles / CE - image - 2
Add to favorites
Compare this product


Characteristics

Type
lithium iron phosphate
Voltage
12 V
Applications
for electric vehicles
Standard
CE
Other characteristics
high-performance, BMS
Load capacity

8.2 Ah

Length / diameter

167 mm
(6.6 in)

Width

124 mm
(4.88 in)

Height

163 mm
(6.4 in)

Weight

1.9 kg
(4.19 lb)

Description

Replaces the following lead-acid batteries: YIX30L - YIX30L-BS - Y60N24-A - Y60N24AL-B - YB30L-B - YB30CL-B - 52515 - 53030 - 53034 - YHD-12H - HVT-2 - HVT-7. Corresponding lithium battery codes: LIX30L BS - MM-ION-15. Higher Inrush Current: up to 50 times the battery capacity, longer lifespan: about 2000 charge and discharge cycles compared to the average 300 of a traditional battery. Eco-Friendly (does not contain acids or heavy metals) and 100% safe: non-combustible and non-explosive, no risk of acid loss. LED indicator of the battery charge status and BMS (Battery Management System). FEATURES The BCTX30-FP-WIQ lithium battery for motorcycles replaces the following lead-acid batteries: YIX30L - YIX30L-BS - Y60N24-A - Y60N24AL-B - YB30L-B - YB30CL-B - 52515 -. 53030 - 53034 - YHD-12H - HVT-2 - HVT-7. Corresponding lithium battery codes: LIX30L BS - MM-ION-15. BC LITHIUM batteries are ultralight (weigh up to 80% less than the corresponding lead-acid batteries) and guarantee greater performance and a higher starting current (up to 50 times the battery capacity). They are particularly advantageous for sports use on the track, have a longer life than traditional lead-acid batteries (about 2000 charge / discharge cycles) and can be quickly recharged. BC LITHIUM BATTERIES are safe, eco-friendly and non-polluting: they do not contain acids or heavy metals (lead, cadmium, mercury), they are neither combustible nor explosive, there is no risk of acid loss.
