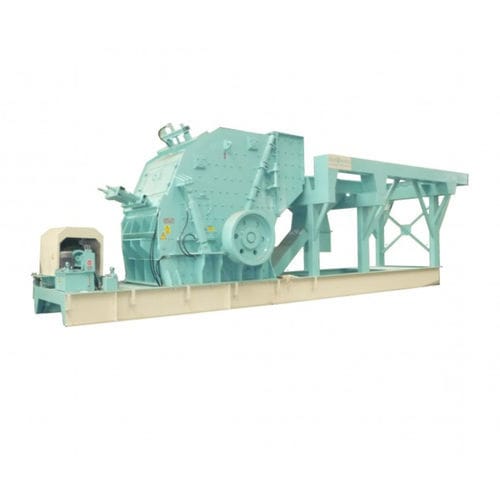

Impact crusher HMC, FMC, SMCstationaryprimary
Add to favorites
Compare this product
Characteristics
- Technology
- impact
- Mobility
- stationary
- Other characteristics
- primary
- Capacity
Max.: 450 t/h
(275.6 lb/s)Min.: 20 t/h
(12.2 lb/s)- Motor power
Max.: 450 kW
(611.83 hp)Min.: 30 kW
(40.79 hp)- Weight
Max.: 40 t
(44.09 us ton)Min.: 6 t
(6.61 us ton)
Description
Here are a number of models, but given the specific nature of the applications, the crushers will be designed according to requirements.
Frame
Electro-welded structure of thick ribbed sheet metal with reinforcements and opening hinges.
Anvils
Special alloy steel impact plates with high abrasion resistance
Armouring
Total protection of the frame with thick armouring
Grids
Installation of large-section bars or perforated sheets on frames.
Rotor
Very large diameter shaft fully protected by the disc sleeves.
Fully machined independent hammer holder discs forming a high inertia unit.
Impact pads in manganese steel or special alloy steel.
Bearings with spherical roller bearings on double rows of rollers.
