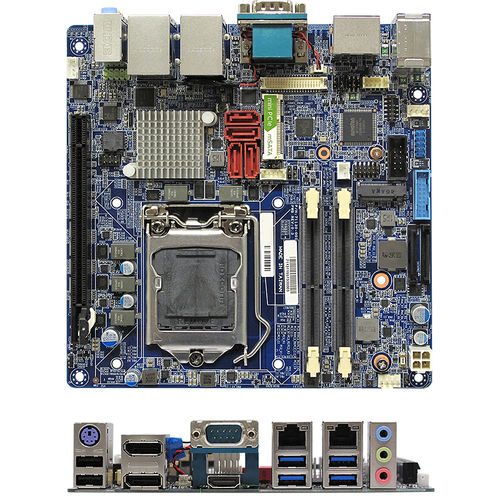

Mini-ITX motherboard MX170QD

Intel® Core™ i seriesIntel® Q170DDR4 SDRAM

The MX170QD is equipped with the Intel® Q170 chipset and LGA1151 socket to support 6th generation Intel® Core™ i3, i5, and i7 processors as well as Intel® Pentium® and Celeron® processors, providing high performance with rich expansion slots and high speed I/O interfaces such as multiple PCIe x16/x4/x1, mini-PCIe and M.2 sockets; dual Display Ports, HDMI, LVDS, optional eDP, and USB 3.0 connectors. The MX170QD is ideal for applications that require high reliability, higher system and graphics performance, and the ability to process multiple complicated tasks simultaneously. These applications include medical imaging systems, luggage x-ray scanning systems, industrial control and automation, robotics, test & measurement, and digital signal processing. High Reliability Gold Plating Connectors Intel LGA1151 socket supports 14nm Intel Core i7/i5/i3 and Celeron processors 2 x (Gold Plated) SODIMM slots support up to 32 GB Dual Channel DDR4 system memory Supports 3 Independent Displays 2 x DP (Gold Plated), 1 x HDMI (Gold Plated), 1 x LVDS Optional eDP 4 x SATA III (Gold Plated), 4 x USB 2.0 (Gold Plated), 6 x USB 3.0 (Gold Plated) 2 x COM Ports 1 x PCIe x16 (Gold Plated) 1 x mini-PCIe (Gold Plated) with SATA III support 1 x M.2 (Gold Plated) (2280 or 2242) 12V, 16 - 24V DC Input (Gold Plated) iAMT 10.0 Optional TPM 2.0
