3.5" single-board computer SMA-IMX6QI

i.MX6 Cortex A9industrial

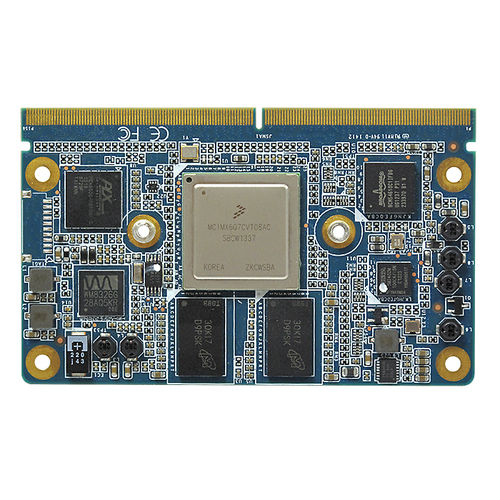

SMA-IMX6QI SMARC module comes standard with the i.MX6 Quad Core with industrial temperature range, 1GB DDR3, and 4GB eMMC as well as an optional full feature carrier board (REV-SA01) with dual Gbit Ethernet, dual CAN Bus, HDMI, LVDS, in a 3.5” SBC form factor. BCM also provides turn-key carrier board design and manufacturing services. The SMA-IMX6QI is target to OEMs that require quick time to market with low design risk for their highly custom board design solutions. Onboard NXP i.MX 6 Quad Core Processor Onboard Wolfson WM8326 PMI 1 GB DDR3L eMMC 4 GB On-module Broadcom BCM54610 10/100/1000 Ethernet Transceiver Up to 3 PCIex1, MLB150, 12 GPIOs, SDIO, SATA, 2 SPI, 5 I2C, 1 I2S, SPDIF, WDT, 2 CAN, JTAG
