- 3.5" single-board computer
- BCM Advanced Research

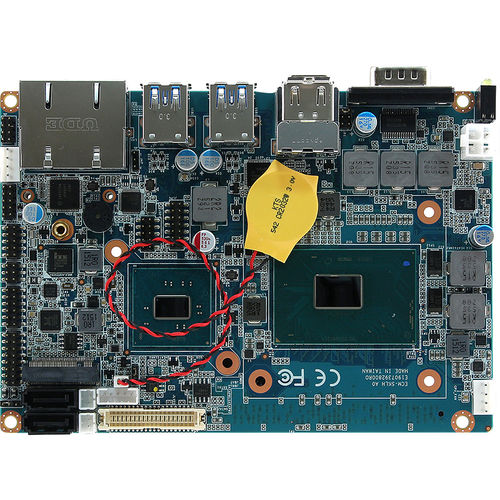

3.5" single-board computer ECM-SKLHIntel® Core™ i seriesMini PCI Express4 USB 3.0
Add to favorites
Compare this product
Characteristics
- Form factor
- 3.5"
- Processor
- Intel® Core™ i series
- Extension slot
- Mini PCI Express
- Connectivity
- 4 USB 3.0
Description
Onboard 6th Gen Intel®Core ™ i7/i5/i3 BGA Processor
One 260-pin DDR4 SODIMM Socket, Supports Up to 16GB DDR4 2133 SDRAM (only support non-ECC)
Dual-channel 18/24-bit LVDS, HDMI, VGA
Triple Display (LVDS, 2x HDMI)
2 SATA III, 1 Mini PCIe, 4 USB 3.0,1 M.2 (2242) SSD, 2 USB 2.0, 2 COM, 8-bit GPIO
HD Audio, Dual Gigabit Ethernet
TPM 2.0/1.2 (Both optional)
iAMT 11
Catalogs
ECM-SKLH
1 Pages
