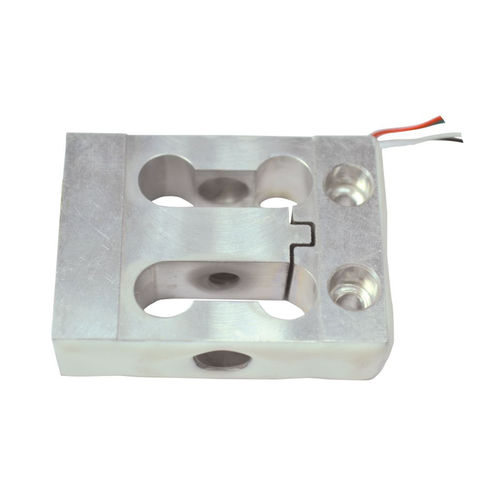

Bending beam load cell UG61

beam typestrain gaugehigh-sensitivity

UG-series force transducers feature an overload-protected structure which are developed to measure the forces where the overloading is inevitable in applications. Based on the precision strain gauge technology from BCM SENSOR, the UG-series force transducer works on bending beam principle with measuring capacity from 3N to maximum 2000N. The transducers can be made from either aluminum alloy (model UG61) or 17-4ph stainless steel (model UG91). The UG-series force transducer is developed as a counterpart of the BCM UF-series force transducer which has no overload-protection. The two series can be installed either vertically or horizontally. When the transducer is installed in its vertically position the bending beam can be either pulled down or pulled up, depending on the direction of force to measure. Therefore both the UF-series and UG-series are designed to symmetrical force transducers and are able to measure, after installation, the two directional forces in application.
