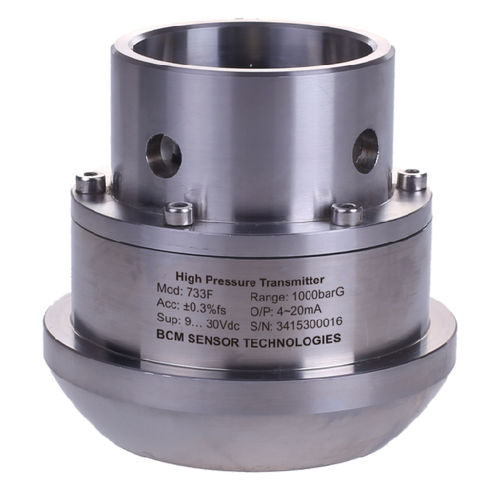

Relative pressure transmitter 733F

strain gauge4-20 mAratiometric

Model 733F Hammer Union pressure transducers and transmitters are specially designed for oil and gas well applications, and are typically used for pressure monitoring in down hole drilling, fracturing, acidizing, mug logging, and cementing processes. Both transducers and transmitters of this model are based on BCM SENSOR metal foil strain gauge technology which have high accuracy and low temperature effect. The transducers are with millivolt output from the Wheatstone bridge circuit, while the transmitters are with the conditioned output signal such as 4~20mA, 0.5~4.5Vdc ratiometric, 0~5Vdc, 1~5Vdc, and 0~10Vdc. The 733F has an all-welded stainless-steel construction so that its diaphragm and the hammer union fittings are machined as one part to provide better reliability in aggressive environmental conditions than any construction sealed with an O-ring. The Hammer Union fittings are also known as Wing Union fittings. The standard 733F is with 2″ 1502 Hammer Union fittings which is widely used in oil and gas well applications. In case of any customized fittings, please consult with BCM SENSOR.
