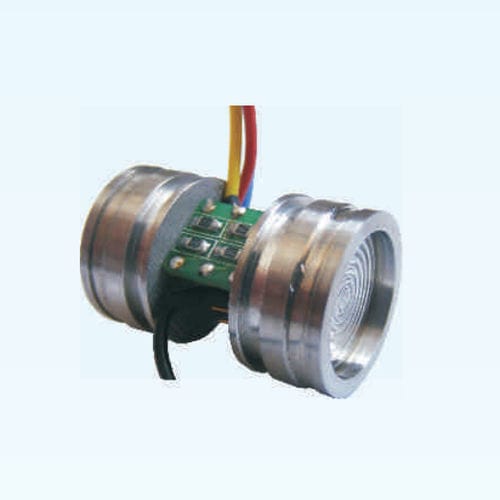

Differential pressure transmitter 101B(A19D)

membranepiezoresistiveanalog

The model 101B (a19D) is a low-profile and compensated sensor for differential pressure. It uses BCM SE103 piezoresistive silicon sensor die. The equipment comes with a sensing element which is packed in a 316L SS (stainless steel) encasement where there is silicone oil filled. This oil helps in transferring the measured pressure from the 316L SS diaphragm to the sensing element. It can be sealed by an O-ring features wetted part with a diameter of 19mm. The 101B(a19D) is designed for differential pressure measurement from 0~0.1bar to 0~20bar with accuracy up to 0.5%fs (full scale). Owing to the flush diaphragm, the sensor is enabled to measure viscous fluids or fluids with particles, and it is also compatible with corrosive media.
