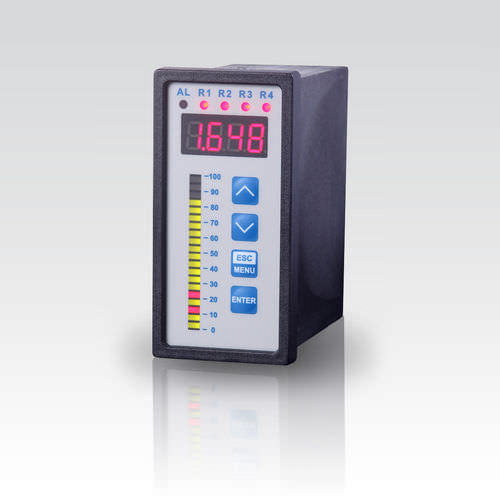

Process indicator CIT 350

with bar graph displaypanel-mountanalog output

The CIT 350 is a type of process display with a bargraph. Its input signal ranges from 0/4-20 mA, 0/1-5 V, and 0/2-10 V. It is made of a 4-digit LED display. Its transducer is supplied with a direct current of 24 V. It uses RS-485 interface. Its overall series has front panel housings with 96 x 48 mm. The bargraph is a multicolor graph with 20 segments. The user can choose 4 characteristic curve functions, such as linear, root, square function, etc. It consists an adjustable brightness and filter. Its adjustable analog output is 0/4-20 mA.
