Differential pressure transmitter DPT 200siliconHARTvalve-mountable
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- silicon
- Output
- HART
- Mounting
- flange, valve-mountable
- Protection level
- ATEX, IP67
- Other characteristics
- two-wire, CE, temperature-compensated, OEM, RoHS, custom, with LCD display, with selectable measurement range, silicone oil-filled, with aluminum housing, with integrated amplifier
- Pressure range
Min.: 1 bar
(14.5 psi)Max.: 20 bar
(290.08 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description

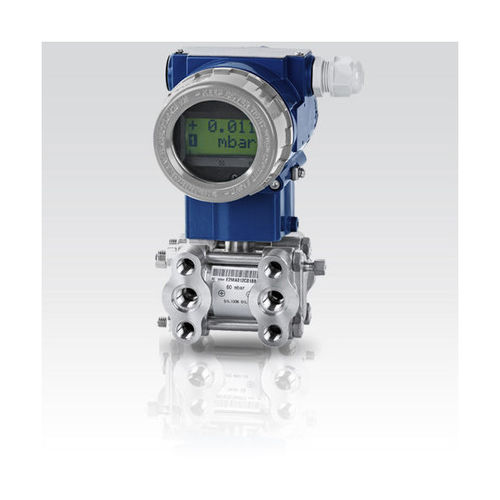

Differential Pressure Transmitter DPT 200
The differential pressure transmitter DPT 200 has been especially designed for the process industry and can be used for level measurement of closed, pressurized tanks, pump or filter controlling, etc.
The possibility passes different pressure seals at the DPT 200 adding with different membrane materials to reach an optimal adaptation to the application.
Features:
- differential pressure von 1 mbar bis 20 bar
- static pressure bis max. 400 bar
- turn-down max. 100:1
- accuracy: 0.075 % FSO
- HART®-communication
- output signal: linear or square root extraction
- aluminium housing
Optional Features:
- IS-version:
Ex ia = intrinsically safe Version (group II)
EX ia= intrinsically safe Version for firedamp mines (group I)
Ex d = flameproof enclosure (group II)
- LC-Display
- stainless steeel housing
