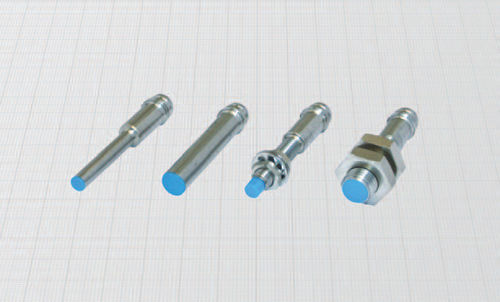

Inductive proximity sensor DC4/4900L
electromagneticcylindricalM8

inductive proximity sensor
inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product

Go to the BDC ELECTRONIC S.r.l. website for more information

Characteristics

Technology
inductive, electromagnetic
Shape
cylindrical
Diameter
M8, M5
Output signal
NAMUR
Supply voltage
8VDC, 9VDC
Material
plastic, stainless steel
Protection level
EMC
Length

35 mm, 39.5 mm
(1.38 in, 1.56 in)

Measuring range

0.8 mm, 1.5 mm, 2.5 mm
(0.03 in, 0.06 in, 0.1 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

NAMUR SERIES • Non amplified in d.c. • Connector output M8 x 1 • Technical data: • Working voltage: 5 ÷ 30 Vdc • Supply voltage according to NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≤ 1 mA without metal: ≥ 3 mA • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Degree of protection: IP67 • According to EN60947-5-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Housing: stainless steel • Sensing face: plastic
