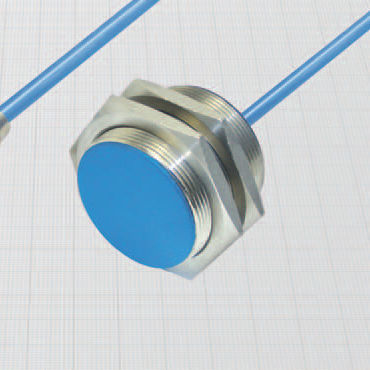

Inductive proximity sensor DC28/4700

cylindricalM30NAMUR

NAMUR SERIES - diameters 4 - 5 - 6,5 - 8 -12 mm • Non amplified in d.c. 2 wires • Cable output • Technical data: • Working voltage: 5 ÷ 30 Vdc • Supply voltage according to NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≤ 1 mA without metal: ≥ 3 mA • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Degree of protection: IP67 • Cable conductor cross section: 0,50 mm2 • According to EN60947-5-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 • For certified ATEX version see ATEX Catalogue Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: nickel plated brass • Sensing face: plastic
