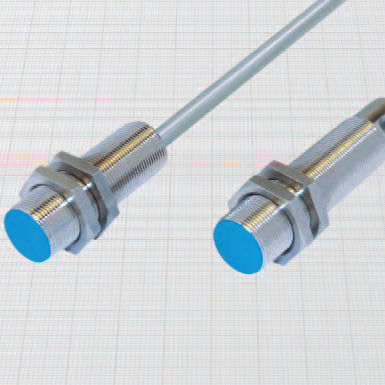

Inductive proximity sensor DCA18/4A09KS

cylindricalplasticbrass

• Diameters 18 mm • Amplified in d.c. 3 and 4 wires • Cable output Technical data: • Supply voltage (UB): 5 ÷ 60 V • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 2,2 V • Temperature range: - 25° ÷ + 75°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Cable conductor cross section: 0,50 mm2 • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: nickel plated brass • Sensing face: plastic
