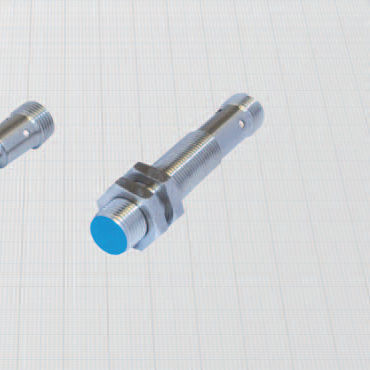

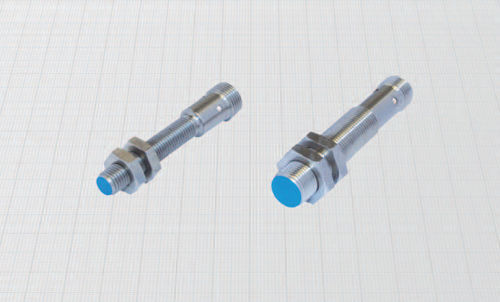

Inductive proximity sensor DCAE12/4309KScylindricalM12M8
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12, M8
- Material
- plastic, stainless steel, brass
- Protection level
- IP67
- Other characteristics
- with amplified output
- Length
60 mm, 66 mm
(2.36 in, 2.6 in)- Measuring range
1.5 mm, 2 mm, 2.5 mm, 4 mm
(0.06 in, 0.08 in, 0.1 in, 0.16 in)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Diameters 8 - 12 mm •
Amplified in d.c. •
Connector output M12 x 1 •
Technical data:
• Supply voltage (UB): diameter 8 mm 7 ÷ 30 Vdc
diameter 12 mm 5 ÷ 40 Vdc
• Max ripple: 10%
• No-load supply current (Io): ≤ 10 mA
• Voltage drop (Ud): ≤ 1,5 V
• Max thermal drift of sensing distance Sr
: ± 10%
• Repeat accuracy (R): 2%
• Switching hysteresis (H): 10%
• Switch status indicator: yellow LED
• Protected against short-circuit and overload
• Protected against any wrong connection
• Suppression of initial false impulse
• Electromagnetic compatibility (EMC) according to EN60947-5-2
• Shock and vibration resistance according to EN60068-2-27 EN60068-2-6
Materials:
• Housing diametro 8 mm: stainless steel
• Housing diametro 12 mm nickel plated brass
• Sensing face: plastic
