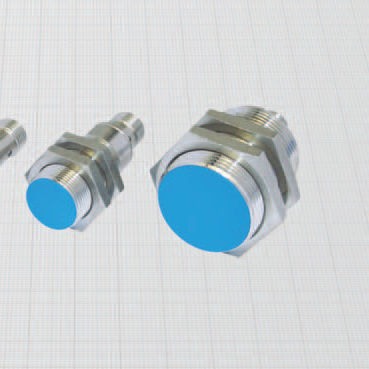

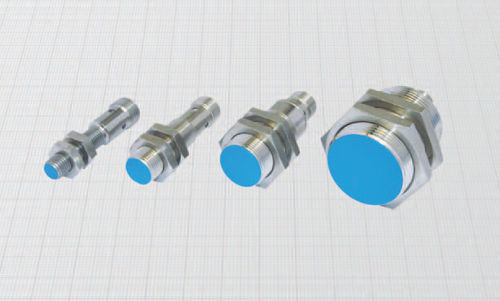

Inductive proximity sensor DSA8/4309KS

cylindricalM30M18

• SHORT SERIES - diameters 8 - 12 - 18 - 30 mm • Amplified in d.c. • Connector output M12 x 1 Technical data: • Supply voltage (UB): see ordering references • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 1,5 V • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Switch status indicator: yellow LED • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Housing 8 mm: stainless steel • Housing 12 ÷ 30 mm: nickel plated brass • Sensing face: plastic
