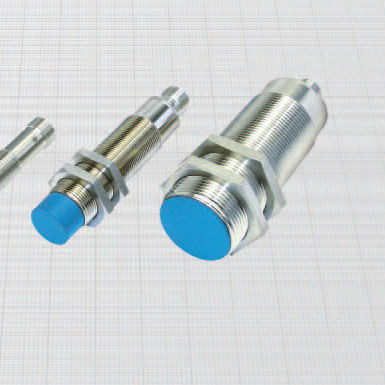

Inductive proximity sensor DCA8/4309KT

cylindricalM30M18

• With extended temperature range (-40° ÷ + 85°C) • Amplified in d.c. 3 and 4 wires • Connector output M12 x 1 Technical data: • Supply voltage (UB): 10 ÷ 30 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): see ordering references • Temperature range: - 40° ÷ + 85°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Housing 8 mm: stainless steel • Housing 12 ÷ 45 mm: nickel plated brass • Sensing face: plastic
