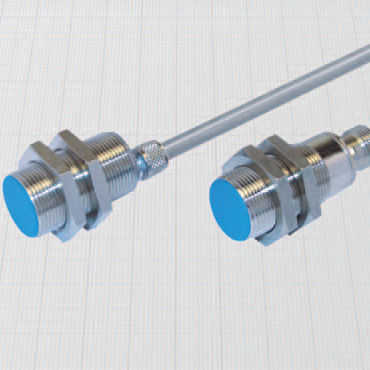

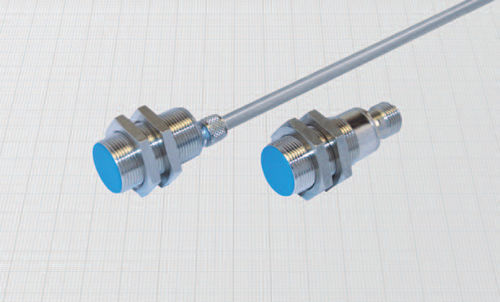

Inductive proximity sensor DSA18/4609KSJ

cylindricalM18plastic

• SHORT SERIES - degree of protection IP68 • Amplified in d.c. 3 wires • Cable and connector output M12 x 1 General Features: This new series solves definitively the problem of the ingress of liquids to the inner parts of the sensors. Thanks to the inner hermetic sealing they can be submitted to nostop jets of liquids under pressure even in presence of temperature changes. They find application in automatic washing machinery, in machines subject to water jets and in continuous immersion applications. Technical data: • Supply voltage (UB): 5 ÷ 40 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 1,5 V • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP68 • Switch status indicator: yellow LED • Cable conductor cross section: 0,50 mm2 • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing and gland: nickel plated brass • Sensing face: plastic
