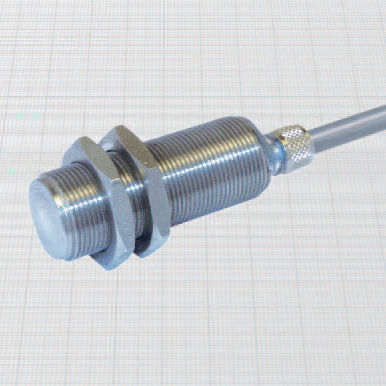

Inductive proximity sensor DCA18/4609MKSJ

cylindricalM18stainless steel

Stainless steel sensing face • Amplified in d.c. 3 wires • Cable output • General Features: This particular type of sensor has increased mechanical and chemical resistance: • fluid ingress resistant • pressure resistant • corrosion resistant • impact resistant • vibration resistant • abrasion and incandescent objects resistant These particulars characteristics are mainly dependent by the building of the body, which is made from a single solid piece of stainless steel. The absence of junctions doesn’t allow the fluid ingress through the sensing face. A very special sealing system on the back side makes of this sensor the ideal solution for the most critical applications. Technical data: • Supply voltage (UB): 7 ÷ 40 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 1,5 V • Temperature range: - 25° ÷ + 75°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP68 • Max pressure on the front side: 50 bar • Switch status indicator: yellow LED • Cable conductor cross section: 0,50 mm2 • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: stainless steel • Sensing face: stainless steel
