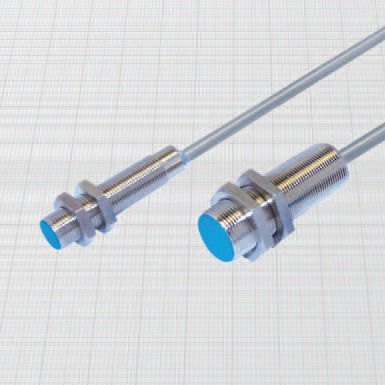

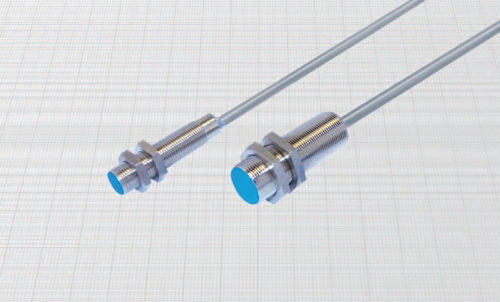

Inductive proximity sensor DCAL12/4609V

cylindricalM30M18

Analog with linear voltage output • Cable output • General Features: These inductive proximity sensors provide an output voltage 0÷10V directly or reversely proportional to the distance between the sensing face and the metal target. The output voltage is also dependent by the material of the target, so they can be used not only to detect distances, displacements, vibrations and wavings but also to recognize the composition of metals and alloys. Technical data: • Supply voltage: 15 ÷ 40 Vdc • Max ripple: 20% • Voltage drop output: 0 ÷ 10 V • Temperature range: - 10° ÷ + 70°C • Max thermal drift: < 10% • Degree of protection: IP67 • Cable conductor cross section: 0,22 mm2 + shield on 12 mm 0,35 mm2 + shield on 18 - 30 mm • Electromagnetic compatibility (EMC) according to EN61000-6-2/-4 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. shielded • Housing: nickel plated brass • Sensing face: plastic
