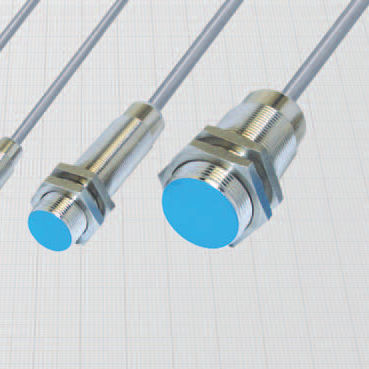

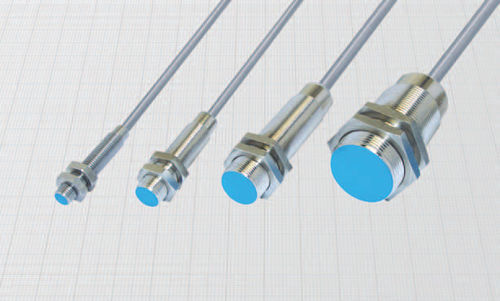

Inductive proximity sensor AXM8/4600S

cylindricalM30M18

Voltage 20 ÷ 240 V • Amplified in d.c. + a.c. 2 wires • Cable output • General Features: These sensors are able to work with either direct or alternate current. Voltage drop and residual current are very low. They are not polarized and the load can be connected on both the leads. In many applications they can used to replace mechanical microswitches. Technical data: • Supply voltage (UB): 20 ÷ 240 Vdc/Vac • Electrical system frequency: 40 ÷ 60 Hz • Off-state current (Ir ) at 24 V: ≤ 1 mA • Off-state current (Ir ) at 220 V: ≤ 1,5 mA • Minimum operational current (Im): 5 mA • Voltage drop (Ud): ≤ 5 V • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Cable conductor cross section: 0,35 mm2 on 8 and 12 mm 0,50 mm2 on 18 mm 0,75 mm2 on 30 mm • Protected against short-circuit and overload (versions with letter K) • Suppression of initial false impulse • Class 2 equipment according to IEC 536 • Shock and vibration according to EN60068-2-27 EN60068-2-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R.
