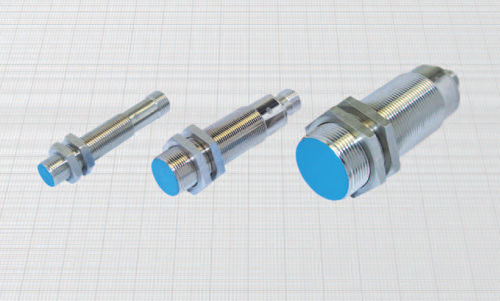

Inductive proximity sensor AX8/4609S

cylindricalIP67with amplified output

• Voltage 20 ÷ 240 V • Amplified in d.c. + a.c. • Connector output M12 x 1 General Features: These sensors are able to work with either direct or alternate current. Voltage drop and residual current are very low. They are not polarized and the load can be connected on both the leads. In many applications they can used to replace mechanical microswitches. Technical data: • Supply voltage (UB): 20 ÷ 240 Vdc/Vac • Electrical system frequency: 40 ÷ 60 Hz • Off-state current (Ir ) at 24 V: ≤ 1 mA • Off-state current (Ir ) at 220 V: ≤ 1,5 mA • Minimum operational current (Im): 5 mA • Voltage drop (Ud): ≤ 5 V • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Switch status indicator: yellow LED • Protected against short-circuit and overload • Suppression of initial false impulse • Class 2 equipment according to IEC 536 • Shock and vibration according to EN60068-2-27 EN60068-2-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2
