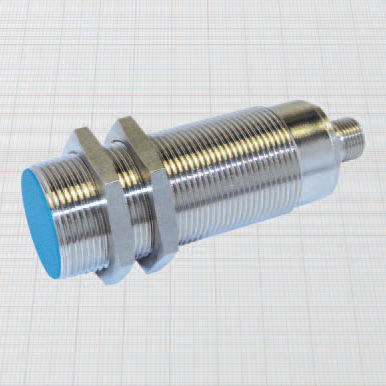

Inductive proximity sensor AC30/4109ScylindricalIP67with amplified output
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Protection level
- IP67
- Other characteristics
- with amplified output
- Measuring range
10 mm, 15 mm
(0.39 in, 0.59 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
• Diameter 30 mm
• Amplified in a.c.
• Connector output M12 x 1
Technical data:
• Supply voltage (UB): 20 ÷ 240 Vac
• Electrical system frequency: 40 ÷ 60 Hz
• Off-state current (Ir
): ≤1,5 mA a 110 Vac
• Minimum operational current (Im): 5 mA
• Voltage drop (Ud): ≤ 5 V
• Max thermal drift of sensing distance Sr
: ± 10%
• Repeat accuracy (R): 2%
• Switching hysteresis (H): 10%
• Degree of protection: IP67
• Switch status indicator: yellow LED
• Suppression of initial false impulse
• Electromagnetic compatibility (EMC) according to EN60947-5-2
• Shock and vibration resistance according to EN60068-2-27 EN60068-2-6
Materials:
• Housing: nickel plated brass
• Sensing face: plastic
