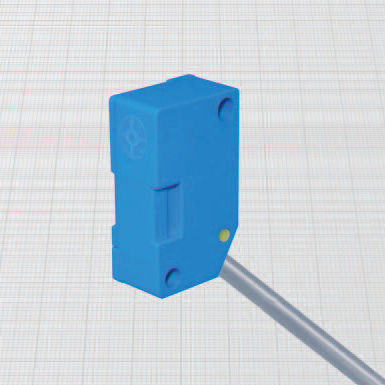

Inductive proximity sensor DCMZ series

mechanicalelectromagneticrectangular

Type Z • Amplified in d.c. 2 wires non polarized • Cable output • General Features: These sensors are not polarized and the load can be connected on both positive and negative lead (function PNP or NPN). So they can replace traditional mechanical microswitches in many applications. They have shape and fixing holes as V3 standard microswitches. The particular cable position allows the mounting on every side of the housing. The output status is indicated by LED visible from 3 sides. Technical data: • Supply voltage (UB): 10 ÷ 48 Vdc • Max ripple: 10% • Off-state current (Ir ): ≤ 1 mA • Minimum operational current (Im): 5 mA • Voltage drop (Ud) con Ie = 10 mA: ≤ 5 V • Voltage drop (Ud) con Ie = 100 mA: ≤ 6 V • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Cable conductor cross section: 0,35 mm2 • Protected against short-circuit and overload • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: plastic
