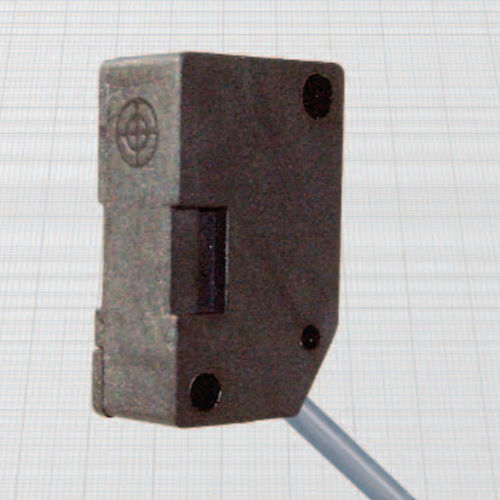

Inductive proximity sensor DCAZ/4609KS3GD

electromagneticrectangularplastic

AMPLIFIED IN d.c. 3-wire - TYPE Z • ATEX certified II 3GD for zone 2;22 • Cable output • General features: This sensor has the same shape and fixing holes as V3 standard microswitches. The particular cable position allows the mounting on every side of the housing. The special material of the housing allows the use without additional protections against electrostatic charges. The output status is indicated by LED visible from 3 sides. Technical data: • Supply voltage (UB): 7 ÷ 30 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): < 1,5 V • Temperature range: - 25° ÷ + 60°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis max (H): 10% • Switch status indicator: yellow LED • Cable conductor cross section: 0,15 mm2 • Marking: II 3D Ex tc IIIC T80°C IP67 X II 3G Ex nAc IIC T6 X • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • According to: EN60079-0/EN60079-15/EN60079-31 • Shock and vibration resistance according to EN60068-2-27/EN60068-2-6 Use in hazardous area according to instruction manuals
