Capacitive proximity sensor NKS18/4300A
electromagneticcylindricalM30

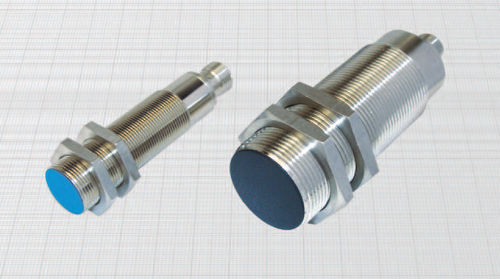

Capacitive proximity sensor - NKS18/4300A - BDC ELECTRONIC S.r.l. - electromagnetic / cylindrical / M30
Capacitive proximity sensor - NKS18/4300A - BDC ELECTRONIC S.r.l. - electromagnetic / cylindrical / M30
Capacitive proximity sensor - NKS18/4300A - BDC ELECTRONIC S.r.l. - electromagnetic / cylindrical / M30 - image - 2
Add to favorites
Compare this product

Characteristics

Technology
capacitive, electromagnetic
Shape
cylindrical
Diameter
M30, M18
Output signal
NAMUR
Supply voltage
8VDC, 9VDC
Material
plastic, brass, glass
Protection level
explosion-proof, ATEX, EMC, IP67
Other characteristics
safety
Length

77 mm, 88 mm
(3.03 in, 3.46 in)

Measuring range

5 mm, 10 mm
(0.2 in, 0.39 in)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

• NAMUR SERIES • ATEX certified II 1GD for zone 0;20 • Connector output General features: The capacitive sensors are used for detecting any material. Some materials, especially if liquid or metallic, can be detected also through plastic or glass walls. They can be used for various applications: level control in storage bins or tanks; survey filling bottles, etc. Technical data: • Supply voltage according NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≥ 3 mA without metal: ≤ 1 mA • Temperature range: - 20° ÷ + 60°C • Max thermal drift of sensing distance Sr : ± 20% • Repeat accuracy (R): 4% • Degree of protection according EN60529: IP67 • Marking: II 1D Ex iaD 20 T80° C II 1G Ex ia IIC T6 • Certified IMQ 08 ATEX 010 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • According to: EN60947-5-6/EN60079-0/EN60079-11/EN60079-26 • Shock and vibration resistance according to EN60068-2-27/EN60068-2-6 Safety parameters: • Vi max: 13,5 V • Ii max: 60 mA • Ci max: 100 nF • Li max: 100 μH • Pi max: 200 mW These sensors must be used in conjunction with associated apparatus (See Sect. E) Use in hazardous area according to instruction manuals
