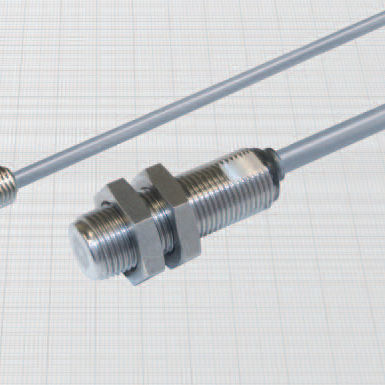

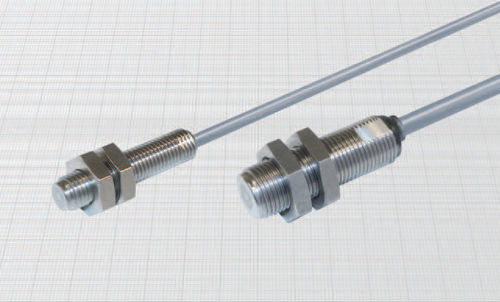

Reed proximity sensor BMS12/4600MA

cylindricalM12M8

REED CONTACT 2-wire • ATEX certified II 1GD for zone 0;20 • Detection of external magnets • Associated apparatus not required - Cable output • General features: These sensors produce an output contact activated by an external magnetic field, independent by the polarity of the field. The activation distance depends upon the power of the magnet (see page C-9), which must be ordered separately. Reed contacts are able to drive directly dc loads (PNP/NPN). The extremely strong construction allows the use in the most difficult conditions even with high pressures on the housing. Technical data: • Working voltage: 5 ÷ 30 Vdc • Output logic: normally open • Contact resistance max: 0,1 Ω • Operate time max: 1 ms • Release time max: 0,4 ms • Temperature range: - 20 ÷ + 60°C • Cable conductor cross section: 0,35 mm2 • Pressure on the front side max: 150 bar • Marking: II 1D Ex maD 20 T80° C II 1G Ex ma II T6 • Certified IMQ 08 ATEX 002 X • According to: EN60079-0/EN60079-18/EN60079-26 Use in hazardous area according to instruction manuals
