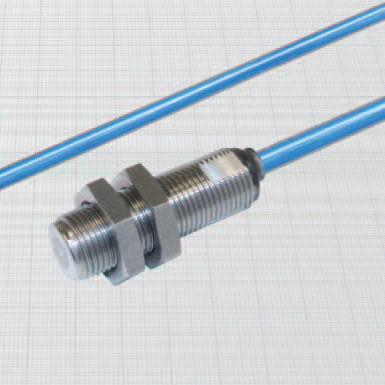

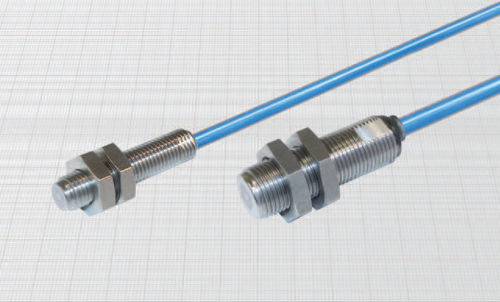

Reed proximity sensor BMSN12/4600A

cylindricalM12M8

• REED CONTACT 2-wire - NAMUR output • ATEX certified II 1GD for zone 0;20 • Detection of external magnets • Cable output General features: These sensors produce an output contact activated by an external magnetic field, independent by the polarity of the field. The activation distance depends upon the power of the magnet (see page C-9), which must be ordered separately. The output impedance is compatible with NAMUR standard, allowing the diagnostic of the connections. The extremely strong construction allows the use in the most difficult conditions even with high pressures on the housing. Technical data: • Working voltage: 7,7 ÷ 9 Vdc • Output logic: normally open • Consumption at 8,2 V with Rx = 1000 Ω activated: ≥ 3 mA non-activated: ≤ 1 mA • Operate time max: 1 ms • Release time max: 0,4 ms • Temperature range: - 20 ÷ + 60°C • Degree of protection: IP67 • Cable conductor cross section: 0,35 mm2 • Marking: II 1D Ex iaD 20 T60° C II 1G Ex ia IIC T6 • Certified IMQ 08 ATEX 010 • According to: EN60947-5-6/EN60079-0/EN60079-11/EN60079-26 Safety parameters: • Vi max: 13,5 Vdc • Ii max: 60 mA • Pi max: 200 mW These sensors must be used in conjunction with associated apparatus (See Sect. E) Use in hazardous area according to instruction manuals
