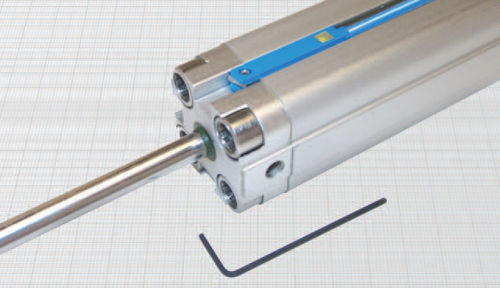

Reed proximity sensor BMS/4600A

rectangulardigitalPNP

REED CONTACT 2-wire • ATEX certified II 1GD for zone 0;20 • For pneumatic cylinders • Cable output • General features: This sensor detects the position of the magnetic ring inside a standard pneumatic cylinder with a T slot. The sensor remains completely recessed and thus mechanically protected. Reed contact provides for a direct driving of DC (PNP/NPN). Technical data: • Working voltage: 10 ÷ 30 Vdc • Output logic: normally open • Contact resistance max: 0,1 Ω • Operate time max: 1 ms • Release time max: 0,4 ms • Temperature range: - 20 ÷ + 60°C • Degree of protection: IP67 • Cable conductor cross section: 0,14 mm2 • Marking: II 1D Ex iaD 20 T60° C II 1G Ex ia IIC T6 • Certified IMQ 08 ATEX 010 • According to: EN60079-0/EN60079-11/EN60079-26 Safety parameters: • Vi max: 30 Vdc • Ii max: 100 mA • Pi max: 750 mW These sensors must be used in conjunction with associated apparatus (See Sect. E) Use in hazardous area according to instruction manuals
