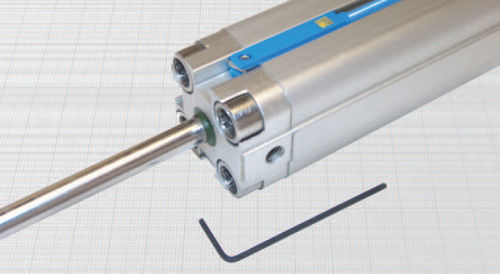

Reed proximity sensor BMSN/4600A

ringrectangularNAMUR

• REED CONTACT 2-wire - NAMUR output • ATEX certified II 1GD for zone 0;20 • For pneumatic cylinders • Cable output General features: This sensor detects the position of the magnetic ring inside a standard pneumatic cylinder with a T slot. The sensor remains completely recessed and thus mechanically protected. The output impedance is compatible with NAMUR standard, allowing the diagnostic of the connections. Technical data: • Working voltage: 7,7 ÷ 9 Vdc • Output logic: normally open • Consumption at 8,2 V with Rx = 1000 Ω activated: ≥ 3 mA non-activated: ≤ 1 mA • Operate time max: 1 ms • Release time max: 0,4 ms • Temperature range: - 20 ÷ + 60°C • Degree of protection: IP67 • Cable conductor cross section: 0,14 mm2 • Marking: II 1D Ex iaD 20 T60° C II 1G Ex ia IIC T6 • Certified IMQ 08 ATEX 010 • According to: EN60957-5-6/EN60079-0/EN60079-11/EN60079-26 Safety parameters: • Vi max: 13,5 Vdc • Ii max: 60 mA • Pi max: 200 mW These sensors must be used in conjunction with associated apparatus (See Sect. E) Use in hazardous area according to instruction manuals
