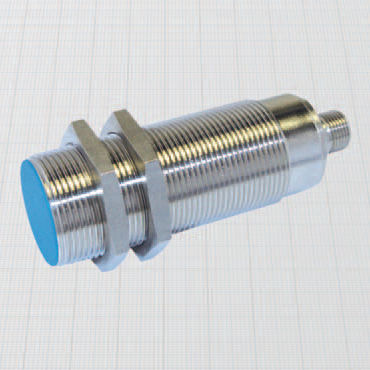

Capacitive proximity sensor BKS30S series

electromagneticcylindricalM12

Amplified in d.c. • Connector output M12 x 1 • General Features: Capacitive sensors are suitable for any material detection. Some material, mostly if liquids, can be detected also through plastic or glass walls. They can be used for the most different applications: level controls on storage bin or tanks; detection of presence or filling of bottles; rain sensor; anti-vandalic key; etc. The adjustment of the sensing distance is possible through the potentiometer on the smooth part of the housing. Technical data: • Supply voltage (UB): 10 ÷ 60 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 2,2 V • Max thermal drift of sensing distance Sr : ± 20% • Repeat accuracy (R): 4% • Switching hysteresis max (H): 15% • Switch status indicator: yellow LED • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Housing: nickel plated brass • Sensing face: plastic
