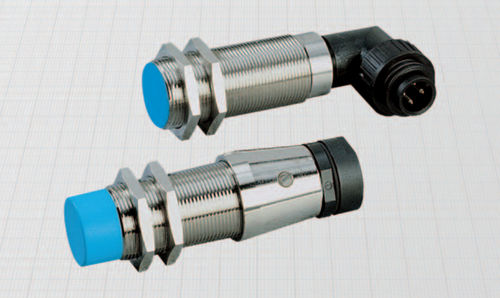

Electromagnetic proximity sensor AC30/4E19ScylindricalM30240 VAC
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Shape
- cylindrical
- Diameter
- M30
- Supply voltage
- 240 VAC
- Material
- plastic, brass
- Protection level
- EMC, IP65
- Length
102 mm, 106 mm, 115 mm
(4.02 in, 4.17 in, 4.53 in)- Measuring range
10 mm, 15 mm, 20 mm
(0.39 in, 0.59 in, 0.79 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
• Supply voltage (UB): 20 ÷ 240 Vac
• Electrical system frequency: 40 ÷ 60 Hz
• Off-state current (Ir
): ≤1,5 mA a 110 Vac
• Minimum operational current (Im): 5 mA
• Voltage drop (Ud): ≤ 5 V
• Temperature range: - 25° ÷ + 70°C
• Max thermal drift of sensing distance Sr
: ± 10%
• Repeat accuracy (R): 2%
• Switching hysteresis (H): 10%
• Degree of protection: IP65
• Switch status indicator: yellow LED
• Suppression of initial false impulse
• Electromagnetic compatibility (EMC) according to EN60947-5-2
• Shock and vibration resistance according to EN60068-2-27 EN60068-2-6
Materials:
• Housing: nickel plated brass
• Sensing face and connector: plastic
